KSAS K2Audio Simple Audio Setup

How to connect:
Please do not use your bluetooth settings and attempt to pair directly to the broadcast ID of K2AudioSetup as this will not work. You must intiiate the connection via the KSAS page using the link in the menu above or by directly entering this url:
https://www.info.keene-electronics.co.uk/ble/index.html

Once the KSAS page is opened click on the blue pulsing button that says “connect” and you should see a pop-up window to enable pairing:

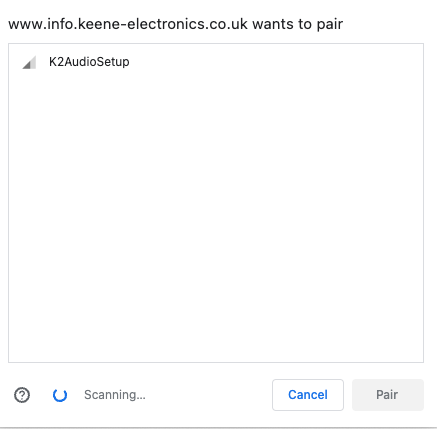

Chrome_pop up-pair-k2audiosetup

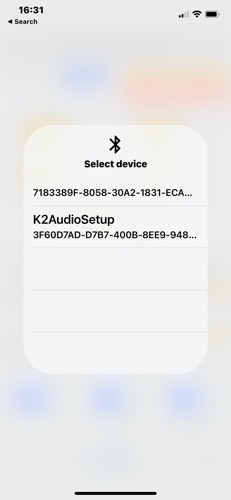

If there is no pop-up window then please check that you are using chrome browser (on PC, Mac or android) or for an ipad/iphone please use the bluefy browser which can be found on the iOS App Store.

When successfully paired the Connect button will change to green and say “yes - connected”

To make adjustments simply
click and drag to adjust the sliders. The changed level is sent to the amplifier at the point the slider is released. As each adjustment takes a couple of seconds to be stored please exercise a little patience when making any adjustments. It can be possible to move and release a slider whilst the previous adjustment is still being written. A quick way to check is to click on “Read-Info” as this will retrieve the last stored value of all settings. The text log will also provide confirmation.

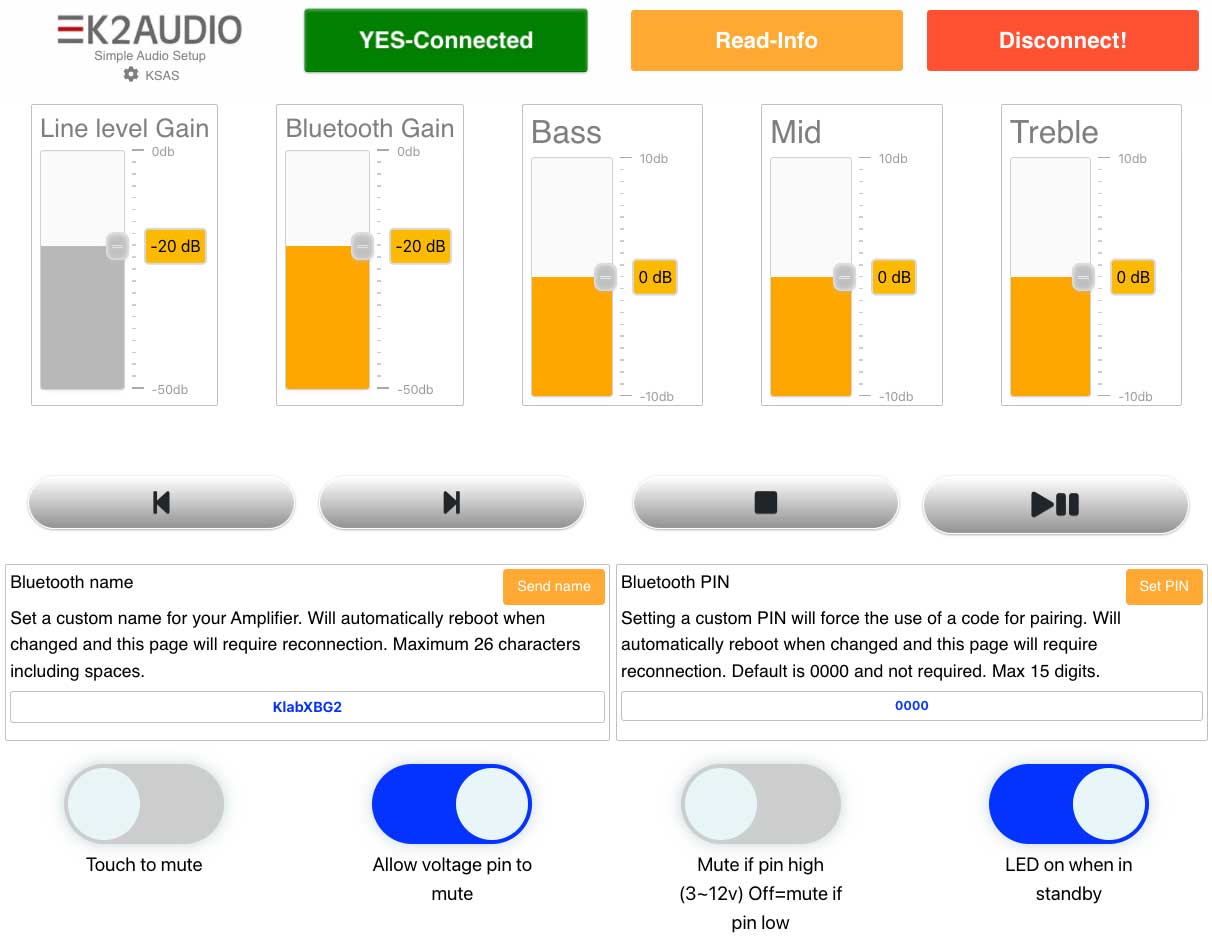

K2AUDIO_KSAS_KLAB

Line level Gain
This is a trimmer that can be adjusted to set the maximum output level for the line level input and determine how loud (or quiet) the amplifier will be in use. It is NOT intended to be used as an everyday volume control as that should be controlled by the line input device. It is particularly worth checking that the minimum volume level (as set by your device) corresponds to the lowest level of background music that you find comfortable. The KLABXBG2 is very powerful and it is rare that the maximum volume would be found insufficient. The GAIN control provide a wide range of adjustment from -50dB to maximum volume at 0dB(no attenuation). Please be aware that as with any amplifier some background level of hiss will become apparent if all controls are set to maximum. We recommend leaving the Gain set at factory default and using it as a means to limit the maximum volume if required.
Note - this control will be greyed out and inactive if the KLAB model is bluetooth only. For dual input models with firmware lower than v1.14 the line level slider will control both the line level input and bluetooth input.

Bluetooth Gain
This is a trimmer that can be adjusted to set the maximum output level for the bluetooth input and determine how loud (or quiet) the amplifier will be in use. It is NOT intended to be used as an everyday volume control as that should be controlled by the bluetooth device, usually a mobile phone or tablet with the volume increased or decreased by a small percentage with a keypress. It is particularly worth checking that the minimum volume level (as set by your device) corresponds to the lowest level of background music that you find comfortable. The KLABXBG2 is very powerful and it is rare that the maximum volume would be found insufficient. The GAIN control provide a wide range of adjustment from -50dB to maximum volume at 0dB(no attenuation). Please be aware that as with any amplifier some background level of hiss will become apparent if all controls are set to maximum. We recommend leaving the Gain set at factory default and using it as a means to limit the maximum volume if required.

Bass/Mid/Treble
These trimmers can be used to tune your loudspeakers to your installation environment. It is recommended to set the source device tone controls to “off” or “flat” so that the effect of the KLABXBG2 trimmers can best be judged. Once you are happy with the relative levels these should be left static and any future adjustments made using the EQ on the source device.

Bluetooth Name
If desired you can enter a custom name for the amplifier. You can use up to 26 characters including spaces. Please note that if you have paired with the device before changing the name you may need to “forget” the device and re-pair before the name change will be recognised. If changed the bluetooth module will reboot and the KSAS page will need to be reconnected to make any further adjustments.

PIN
By default the amplifier is set for “simple secure pairing” and no PIN is required to establish a connection. Here you can set a custom PIN and this will be required before pairing can be established. If you have paired with the device before setting a PIN you may need to “forget” the device and re-pair before the PIN will be required. If changed the bluetooth module will reboot and the KSAS page will need to be reconnected to make any further adjustments.

Touch to mute
The front panel contains a capacitive touch sensor. Placing your hand over the front panel will cause the amplifier to mute its output, indicated by both red and Blue LED’s being constantly illuminated. Touching the panel again will release the mute. Note that Mute will NOT pause any bluetooth music it simply disables the audio output. Also note that once triggered there is a required pause of at least three seconds before the touch panel sensor can be triggered again. The Touch sensor is disabled by default, use the toggle switch to enable.

Voltage Mute
This can be connected to an external system such as an alarm panel or PA system and used to mute the audio output. It can be set to mute if the pin goes high (3~12v) or mute if the pin goes low. Here you can choose whether the voltage mute is active and if active choose whether the system should mute when the pin is high (between 3v and 12v) or low (0v).

Standby LED
When in standby with no active connection the only active light will be the red LED. If fitted into a bedroom and you wish for total darkness at night you can optionally set this to be extinguished when in standby. A soon as the amplifier is activated by means of bluetooth connection or line input the LEDs will resume normal operation.
