Getting started
The first thing to do is get the switch connected to your network. The easiest method is to use an ethernet cable initially even if you prefer wifi. Simply connect to your router or hub and then connect the power to the switch.

Wait for a few seconds and then type ipmsw1plus.local into your browser address bar and hit return.

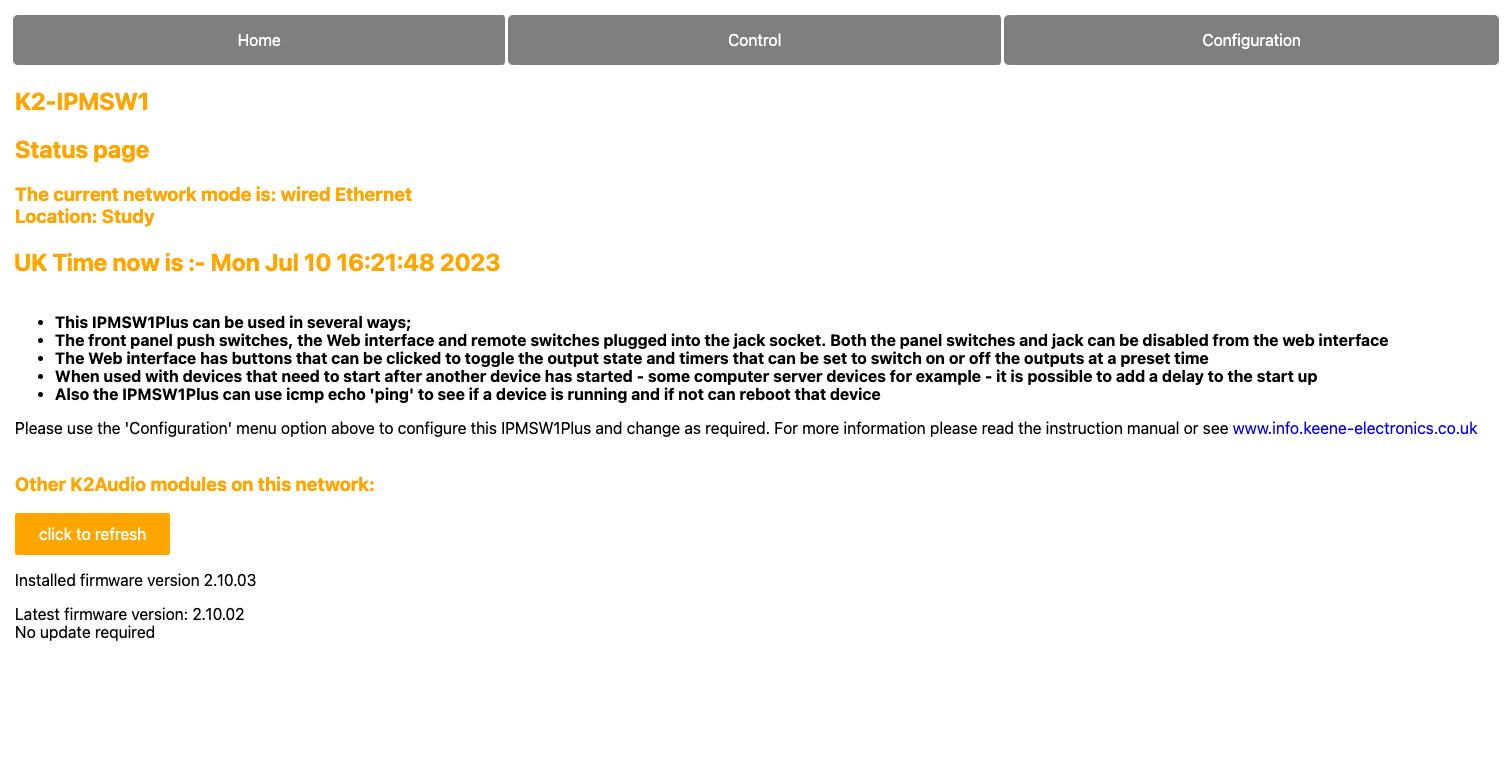

You should now see the switch home page as below and can proceed with any further configuration.

If you already have an ipmsw1plus on the same network you may need to temporarily disconnect it whilst you configure the addition otherwise they will both resolve to the same mdns hostname.

Set Username and Password
In line with the Product Security and Telecommunications Act the Kira modules are no longer supplied with default settings so you will need to enter a username and password. Once successfully created this message will no longer appear on the home page. The details will be required whenever you wish to access the module configuration page and can also be updated on that page.

Getting started without ethernet

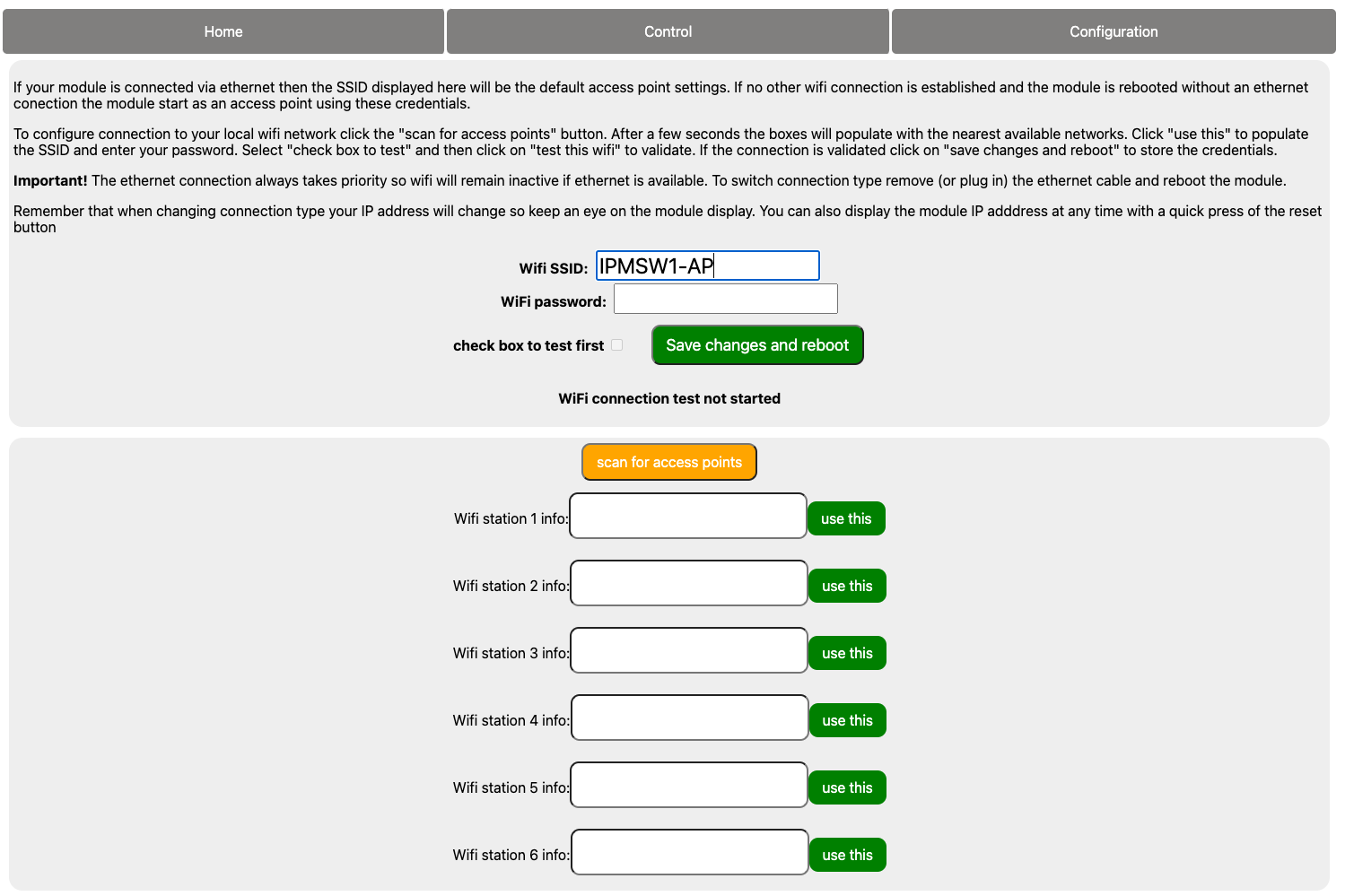

Connect power to the switch and wait for at least 30 seconds. Open the network settings on your PC/tablet/phone and look for a wifi access point called IPMSW1-AP. Click to connect, there is no password required. Once connected open a browser window and enter 192.168.4.1 in the address bar. You should now see the Home page as displayed above.

Click on “configuration” in the top menu. This page is password protected, the factory default  settings are: Username: admin / Password: K2AUDIO!.

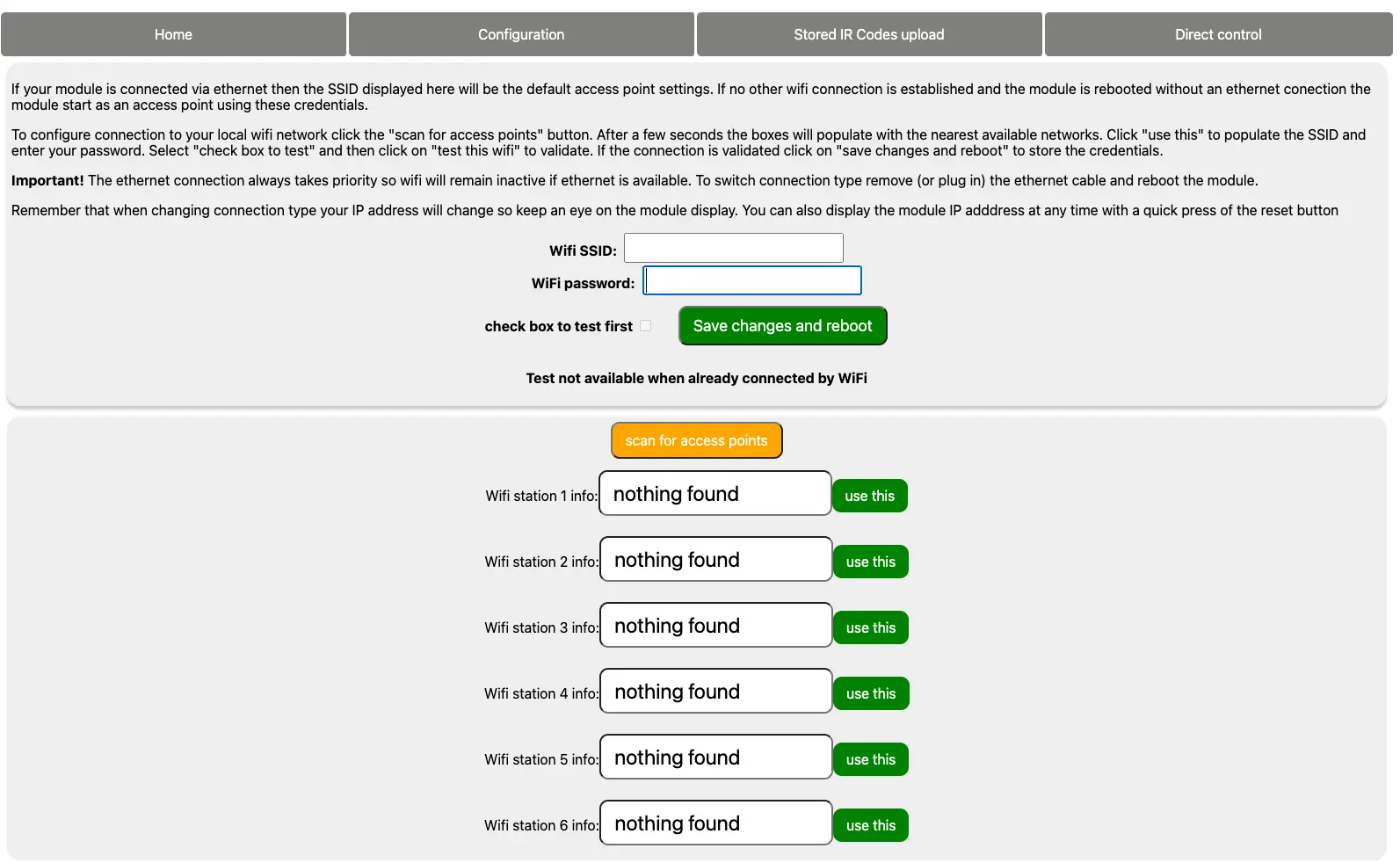

Click on “”WiFi Configuration” then click the “scan for access points” button and wait for the information to populate. Select “use this” for your access point and the name will be copied into the wifi ssid section. Next enter your wifi password. At this point you can optionally use the check box to validate the password, then click on “save changes and reboot”.  The switch will now reboot and connect to the selected network. Wait for a few seconds and then type ipmsw1plus.local into your browser address bar and hit return.

You should now see the switch page again and can proceed with any further configuration.
