Password protected page
This page is password protected. The default settings are:
Username: admin
Password: K2AUDIO!
These can be changed by following the “change password” link.

Configuration options

placeholder image

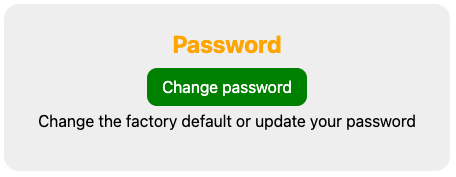

Password

Click here to change the username and password.

placeholder image

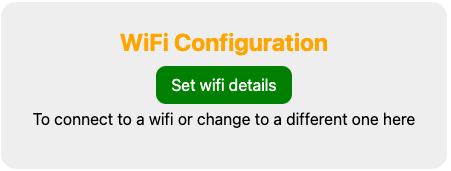

WiFi

Click here to configure the wifi. See the “getting started” menu option above for more details.

placeholder image

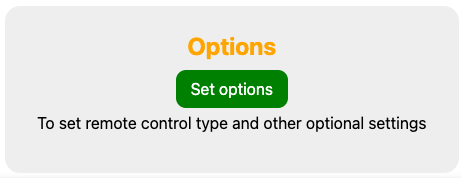

Options

Click here to configure the type of remote control you wish to use. You can also configure whether to use an external reveiver. See the “remote options” tab above for more information.

placeholder image

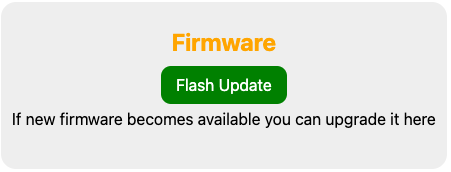

Firmware

Cick to upload a new KiraOneq.bin file See the firmware menu option above for more information.

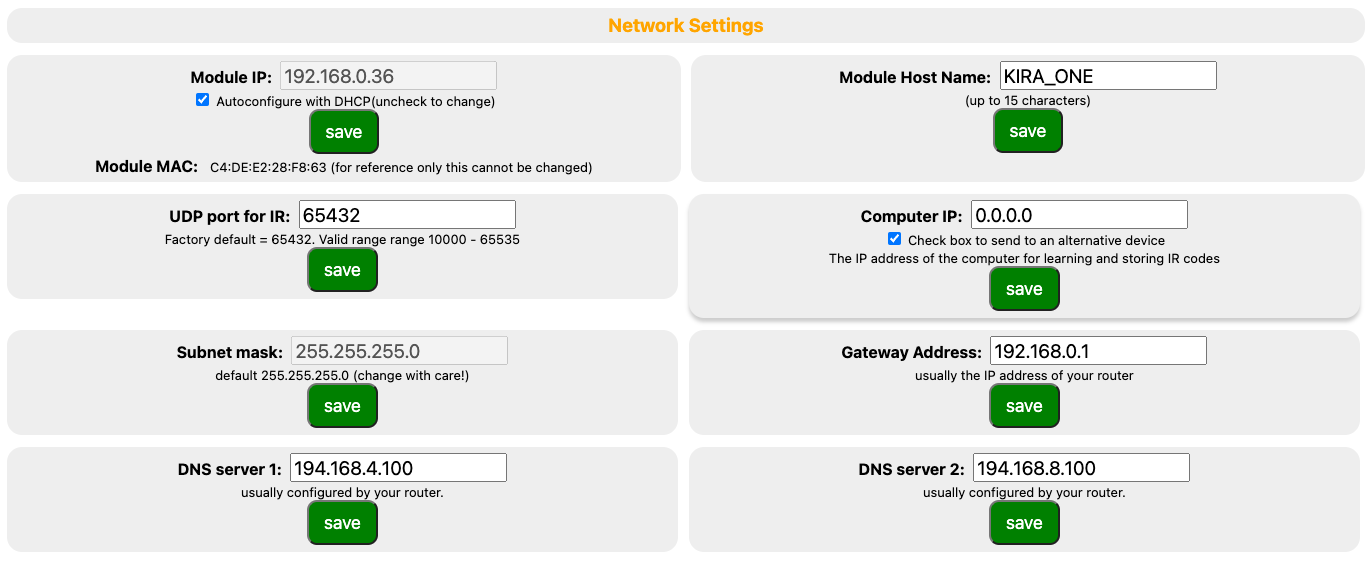

KiraOne_network_settings

Module IP
This is where you can change it from the DHCP assigned to one that better suits your network if required.
Module MAC
For info only, it is not possible to alter this.
Module Host Name
Change as required if you have multiple modules on the same network.
UDP port for IR
The default is port 65432 and it is recommend to leave at this. Should you wish to change enter the new por number and click to save - the valid range is from 10000 to 65535. If using multiple modules make sure that the all the port numbers are set to match.
Subnet Mask
The default is 255.255.255.0 and we recommend you leave it set at this. The only time this should really altered is if you have more than 255 devices on you local network.
Gateway address
If the initial DHCP was successful this is usually set to the IP address of your router, and can be manually entered if required.
DNS Server 1 & DSN Server 2.
The Domain Name Servers will usually have auto configured with the initial DHCP and can be edited if required.
