Macro Commands

macro

A macro command is a series of commands initiated by a single trigger command. These are generally used for "activities", for example a "watch DVD" macro might contain the combined commands to switch on the TV, switch on the DVD player and set the TV to the correct AV channel. The KIRA128 allows you to create up to three macro's each of which can contain a series of five commands.

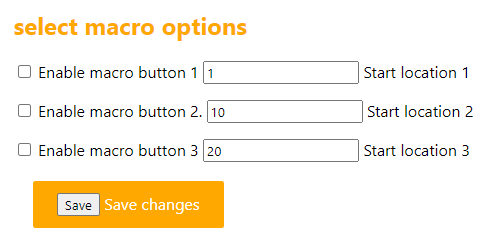

To enable, check the box and enter the start location for the first code in the macro. When this location number is triggered the KIRA128 will automatically send this code plus the codes stored in the next four (sequential) locations.

For example, if you set the start location as 30, when location 30 is triggered the KIRA128 will sequentially send the stored codes for location 30, 31, 32, 33 and 34.
