Overview

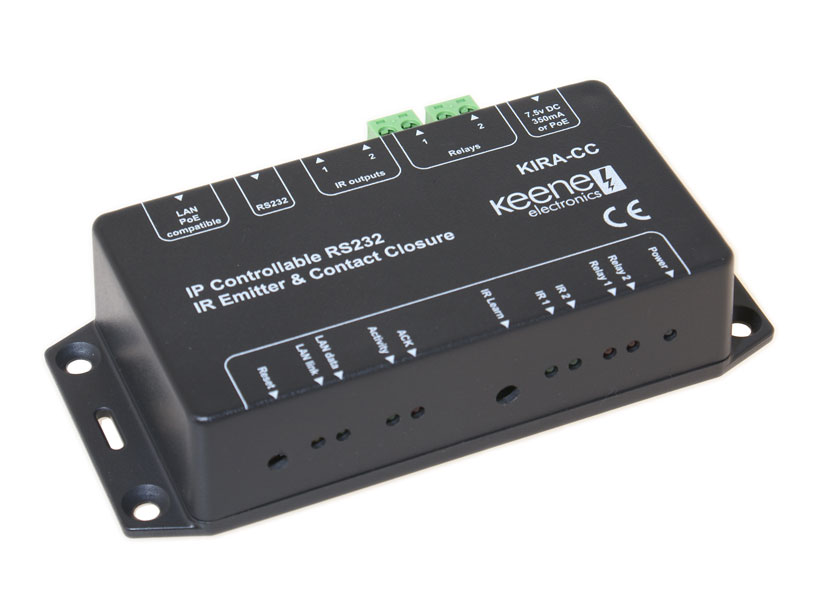

The Keene KIRACC Contact Closure module provides a number of ways to control devices via local network and the internet. Commands can be issued simply by accessing the built in web pages via any device with a browser, and the open API structure means it can integrate seamlessly with a number of other IP control systems and apps for tables and smart phones.
Key features:
Infra Red
- Infra Red over IP – either real time IR receive/transmit over IP used in conjunction with another KIRA module, or use IP control to blast any of the 150 IR codes stored within the on-board memory
- Two IR emitter outputs, individually routable
- 20 macro commands, each up to 30 steps
- Built-in dedicated high accuracy IR code learning receiver.
Contact Closure
- Two isolated relay contacts, each rated at 48V 6A.
- The relays can be set to open, close or pulse with configurable timings.
- Both relays feature pluggable Phoenix connectors for easy installation.
RS232
- Contains a TCP/IP to RS232 server that can be used as an RS232 / TCPIP bridge.
- RS232 strings can be stored into on-board memory and triggered by IP from an app or as part of a macro.
Power
- Built in Power over Ethernet (PoE) capability
TCP/IP
- Can act as a TCP/IP target for IR Anywhere modules
- Built-in support for a dynamic DNS client to cater for non-static IP addresses
